Automatic Pipe Punching Machine for Square and Rectangular Tubes
Customized tube punching solutions for square tubes, rectangular tubes, angle steel and selected profiles.
Series: Customized Punching Series
- Applicable Profiles
- Square tube, rectangular tube, angle steel and customized profile
- Hole Shape
- Round, slot, square and customized hole
- Feeding Length
- 3000 / 6000 / 13000 mm source examples
- Control System
- PLC
DUORUI Pipe Punching Machine is developed for punching holes, slots and customized shapes in metal tubes and profiles. The machine can be configured for square tubes, rectangular tubes, angle steel and customized profiles according to the punching mold and clamping system.
Manual feeding, servo feeding and automatic feeding solutions are available. Single-station, multi-station, single-side, double-side and rotary punching configurations can be developed according to the finished-part drawing and production target.
| Wall Thickness | 0.6 / 1.0 / 1.2 / 3.0 / up to 10.0 mm source examples, configuration-dependent |
|---|---|
| Maximum Hole Diameter | Customized according to tube and hole requirement |
| Punching Stroke | Customized according to tooling and application; no numeric source value supplied |
| Punching Speed | Approximately 1-3 seconds per cycle |
| Hydraulic Motor Power | 5.5 / 7.5 / 11.0 / 15.0 kW examples |
| Voltage | 220V / 380V / customized |
| Machine Dimensions | Approx. 3800 x 750 x 1650 mm / 6800 x 800 x 1650 mm |
| Machine Weight | Approx. 1300 kg / 1600 kg |
| Important Note | Source is a configuration summary, not a fixed model-by-model table |
Application Industries

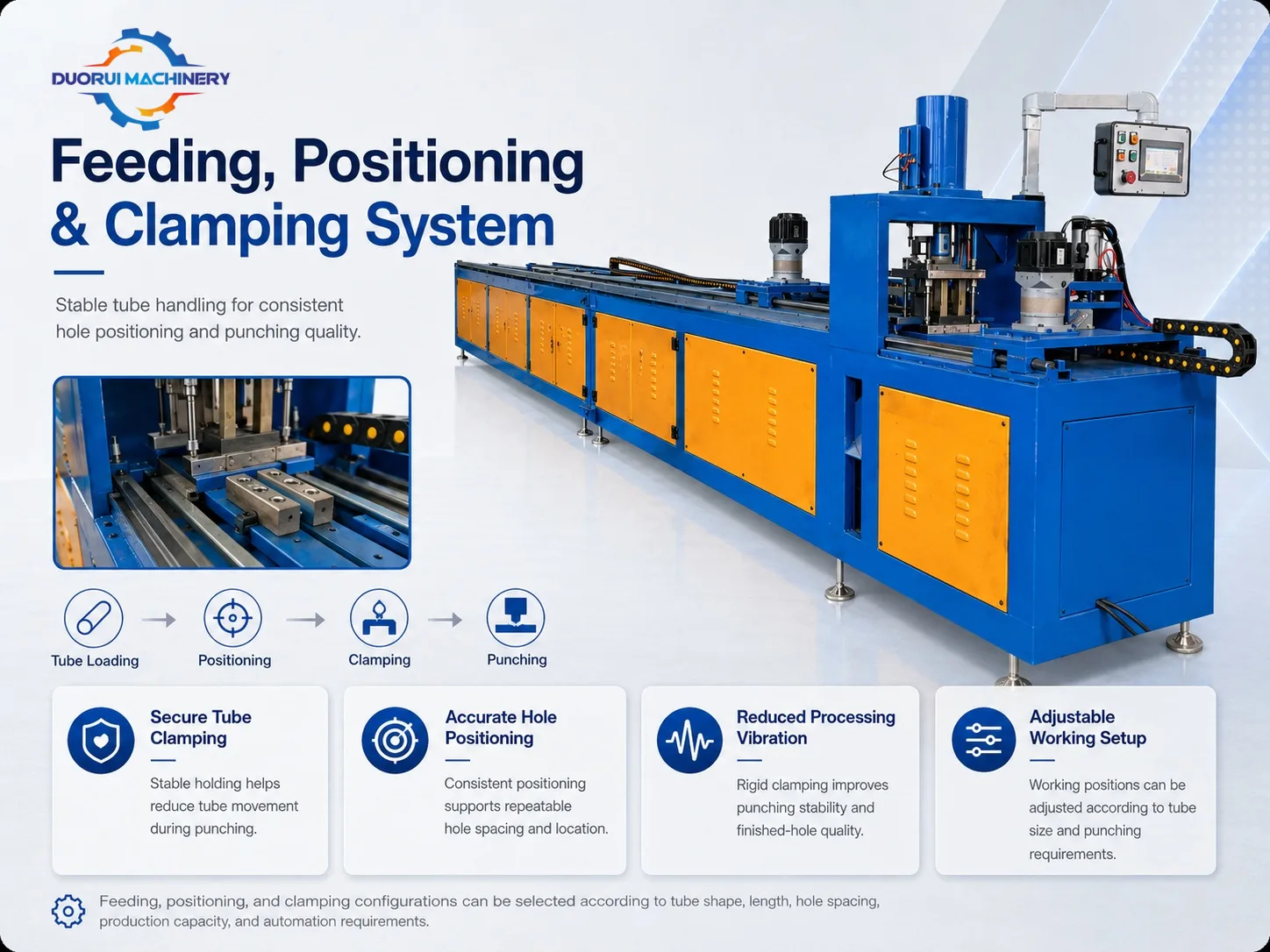

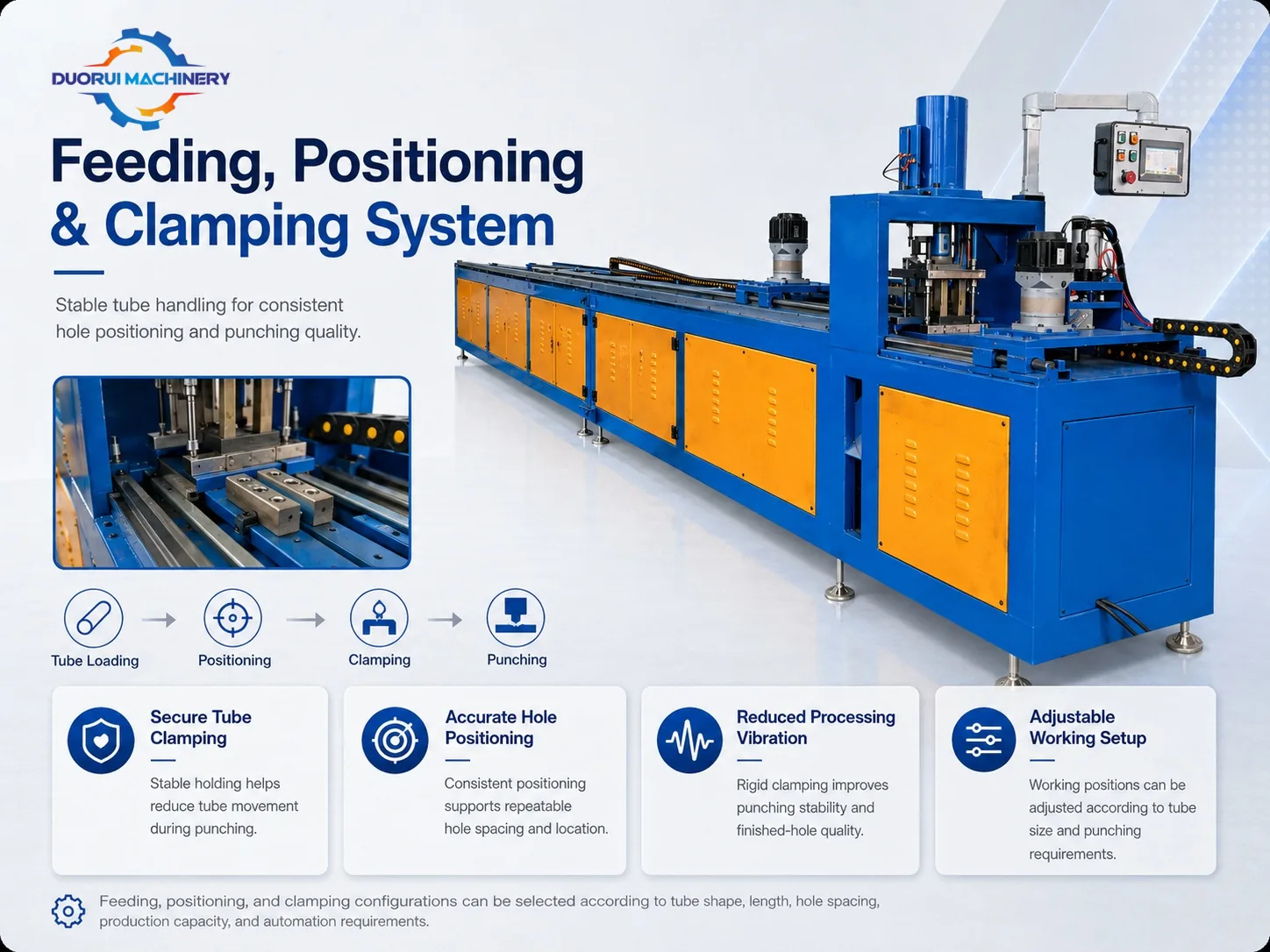

1. Tube positioning
Confirm tube length, hole layout, feeding method and punching direction.

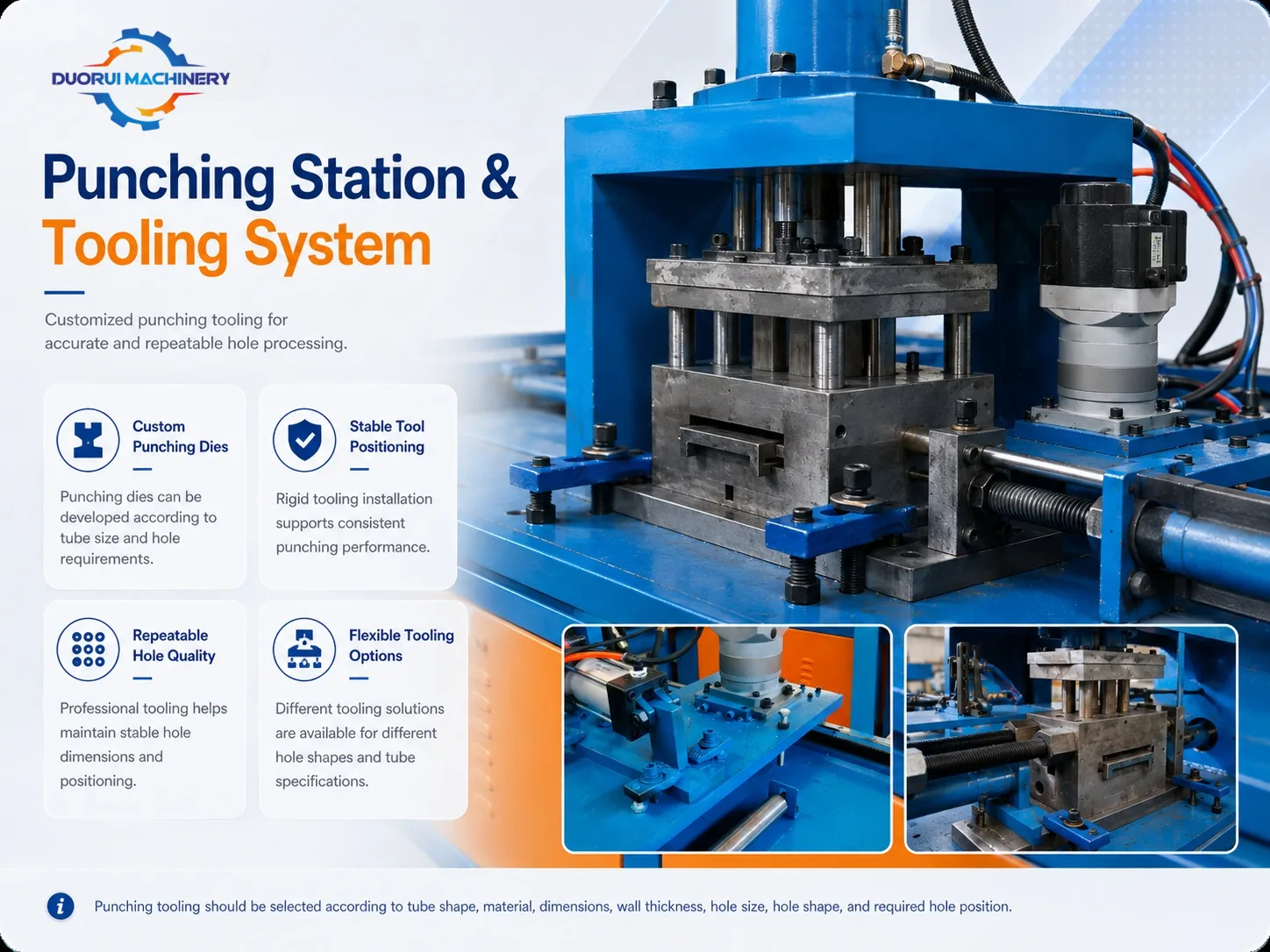

2. Die and clamp setup
Install punching dies and fixtures according to tube shape and hole profile.
3. Hydraulic punching
Process round, slot, square or custom holes with PLC-controlled operation.
4. Hole inspection
Check hole position, edge condition, spacing and repeatability.
Material and component inspection
Check machine frame materials, purchased components, guide rails, motors, hydraulic parts and electrical parts before assembly.
Mechanical assembly
Assemble machine structure, tooling area, feeding, clamping, hydraulic or pneumatic systems according to the production process.
Operation testing
Run control, safety, movement and process tests before shipment where project data allows.
Export packaging
Protect the machine, secure movable parts and prepare export packaging for international delivery.
