CNC Pipe Bending Machine
Automatic tube bending solution for customized metal pipe processing.
Series: CNC Series
- Tube Material
- Carbon steel, stainless steel, aluminum and other project-approved metals
- Tube Shape
- Round, square, rectangular and selected profiles after evaluation
- Tooling
- Customized according to bending radius and drawing
- Quotation Basis
- Tube size, wall thickness, drawing, sample and output requirement
DUORUI CNC Pipe Bending Machine is designed for precision bending of metal tubes, pipes and profiles. It supports customized tube shape processing for different industrial applications, from single-part production to repeatable batch manufacturing.
The machine can be selected according to tube diameter, wall thickness, bending radius, bending angle, feeding length and production requirement. It is suitable for customers who need stable tube bending performance, professional tooling support and international export service.
| Models | RS-18CNC / RS-25CNC / RS-38CNC / RS-50CNC / RS-63CNC / RS-75CNC / RS-89CNC |
|---|---|
| Max bending diameter x wall thickness | RS-18CNC phi19.1x1.2 mm; RS-25CNC phi25.1x1.5 mm; RS-38CNC phi39.1x2 mm; RS-50CNC phi51.1x3 mm; RS-63CNC phi65.1x4 mm; RS-75CNC phi76.1x4 mm; RS-89CNC phi90.1x6 mm |
| Max bending radius | R120 / R160 / R180 / R250 / R250 / R300 / R300 |
| Max bending angle | 190 degrees for listed models |
| Max feeding length | 1800 / 2000 / 2200 / 2500 / 3000 / 3000 / 3000 mm |
| Speed reference | Bending speed max 180/150/150/85/85/40/30 deg/s; turning speed max 200/200/200/200/200/160/160 deg/s; feeding speed max 1000/1000/1000/1000/1000/800/800 mm/s |
| Precision reference | Pipe bending precision +/-0.1 degree; pipe turning precision +/-0.1 degree; feeding precision +/-0.1 mm under suitable conditions and configurations |
| Servo and hydraulic power | Pipe turning servo 0.2/0.4/0.75/0.75/0.75/1/1.5 kW; feeding servo 0.4/0.75/1/1.5/1.5/1.5/2 kW; hydraulic motor 4/4/5.5/5.5/7.5/11 kW except RS-18CNC source blank |
| Machine weight | 1200 / 1300 / 1500 / 2500 / 3000 / 4500 / 5500 kg |
| Model selection note | Please select according to actual tube diameter, wall thickness, bending radius, material and production requirement. Final configuration should be confirmed by drawings or sample testing. |

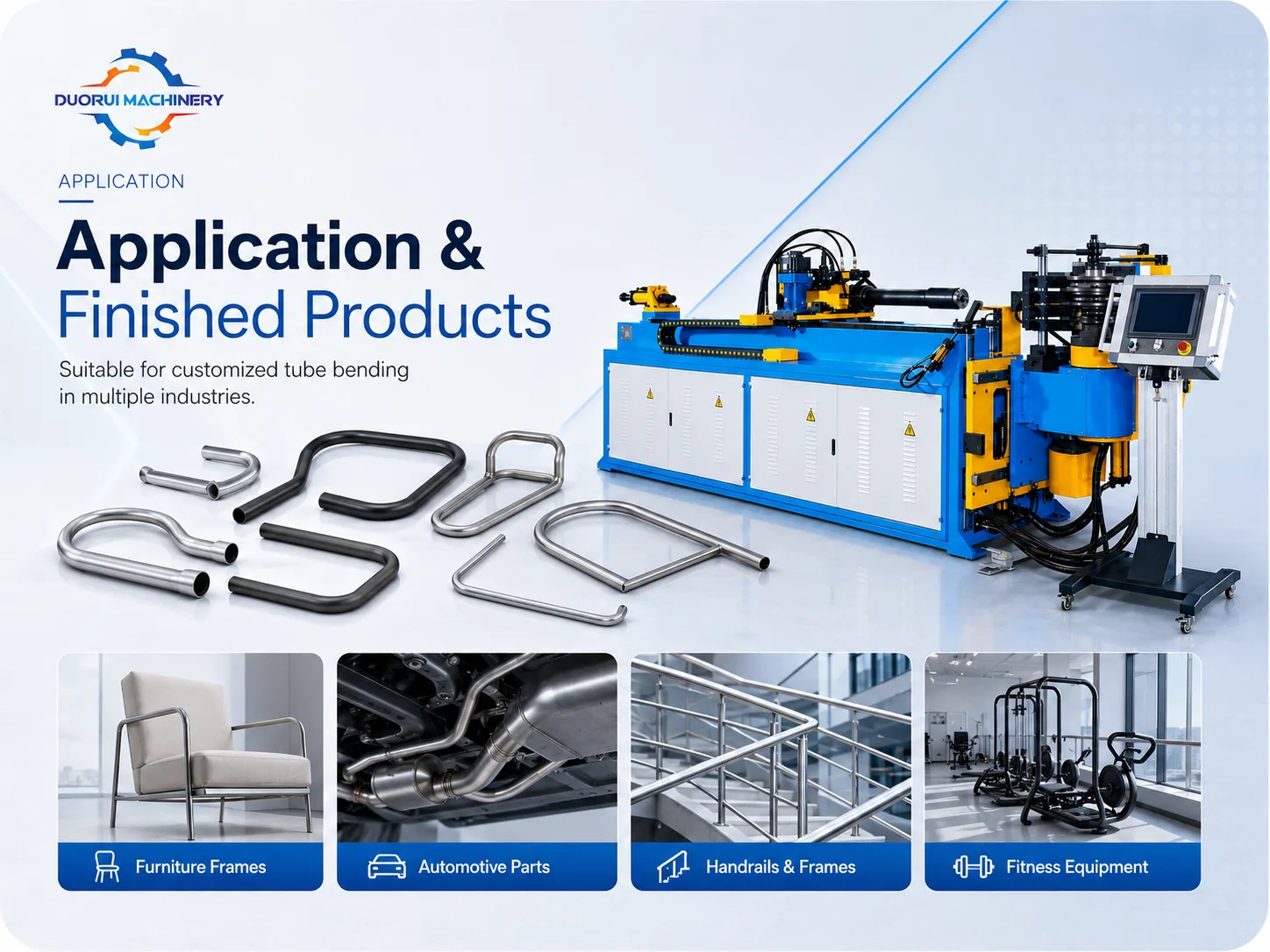

Application Industries
1. Drawing and radius review
Confirm tube size, material, bending radius, angle, feeding length and production requirement.
2. Tooling confirmation

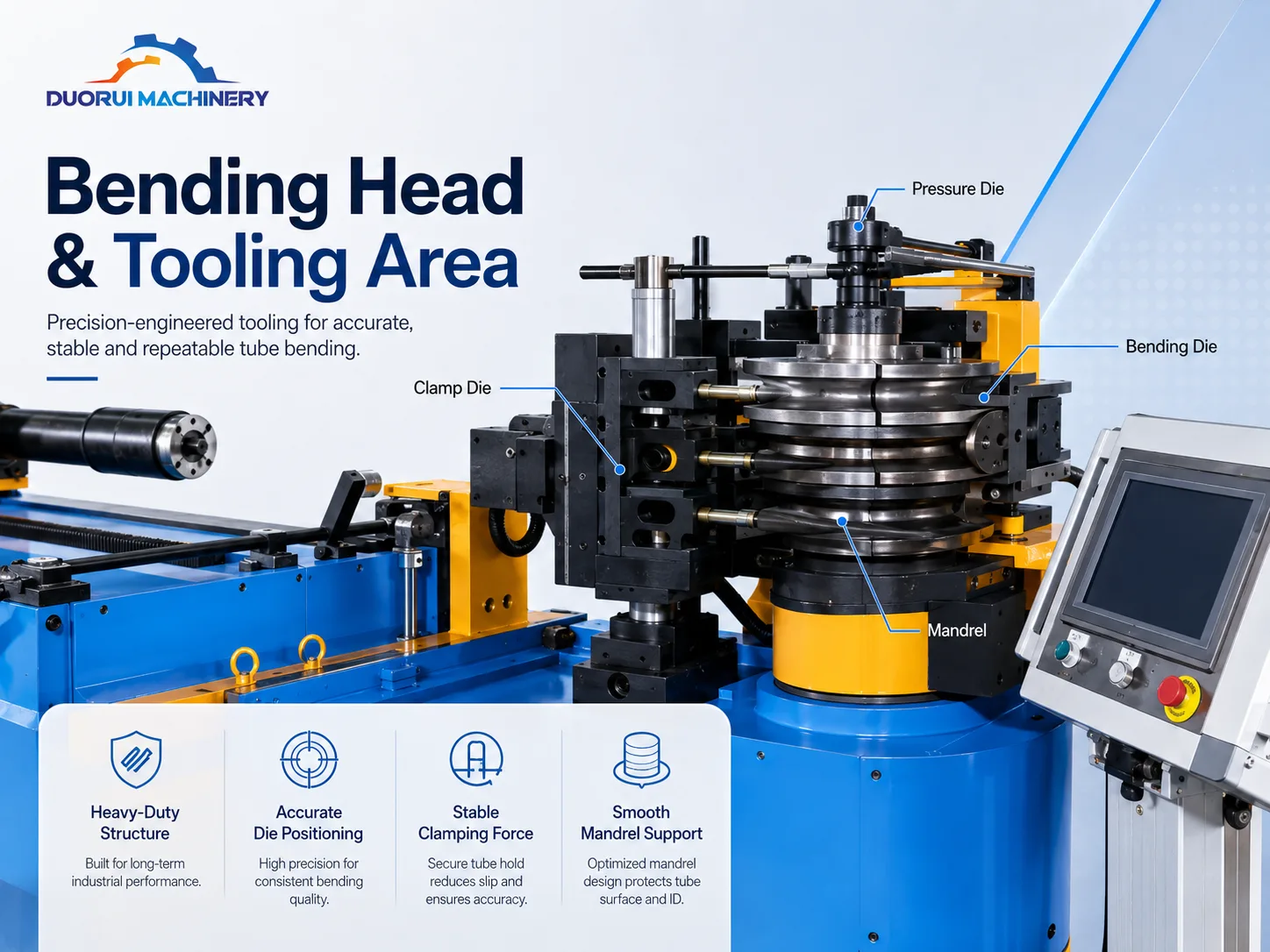

Review bending die, clamp die, pressure die and mandrel support according to the product.
3. CNC bending operation

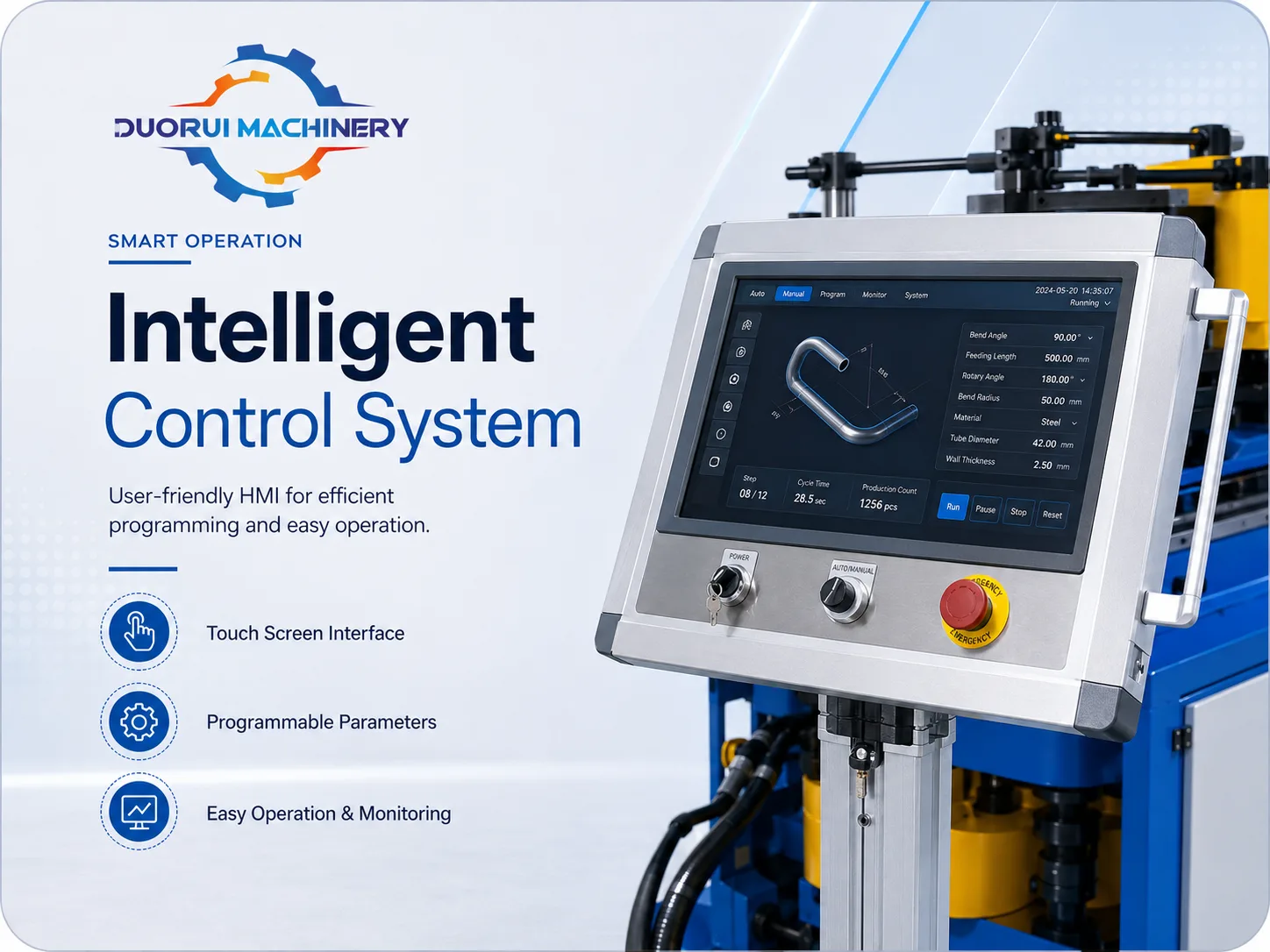

Set programs through HMI and control bending, turning and feeding movements.
4. Sample and angle inspection
Check sample bending result, repeatability and packing condition before delivery.
Material and component inspection
Check machine frame materials, purchased components, guide rails, motors, hydraulic parts and electrical parts before assembly.
Mechanical assembly

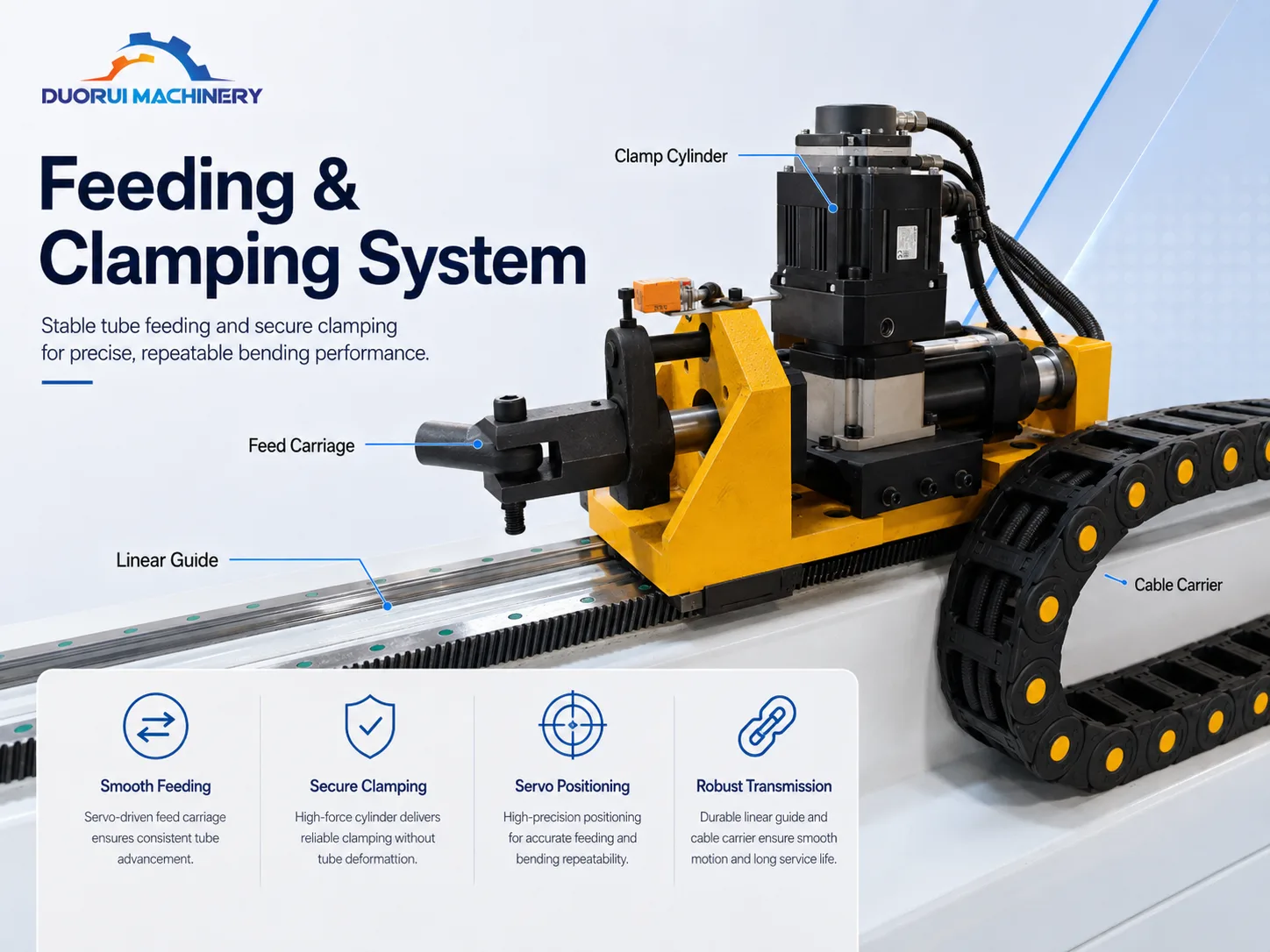

Assemble machine structure, tooling area, feeding, clamping, hydraulic or pneumatic systems according to the production process.
Operation testing
Run control, safety, movement and process tests before shipment where project data allows.
Export packaging
Protect the machine, secure movable parts and prepare export packaging for international delivery.
